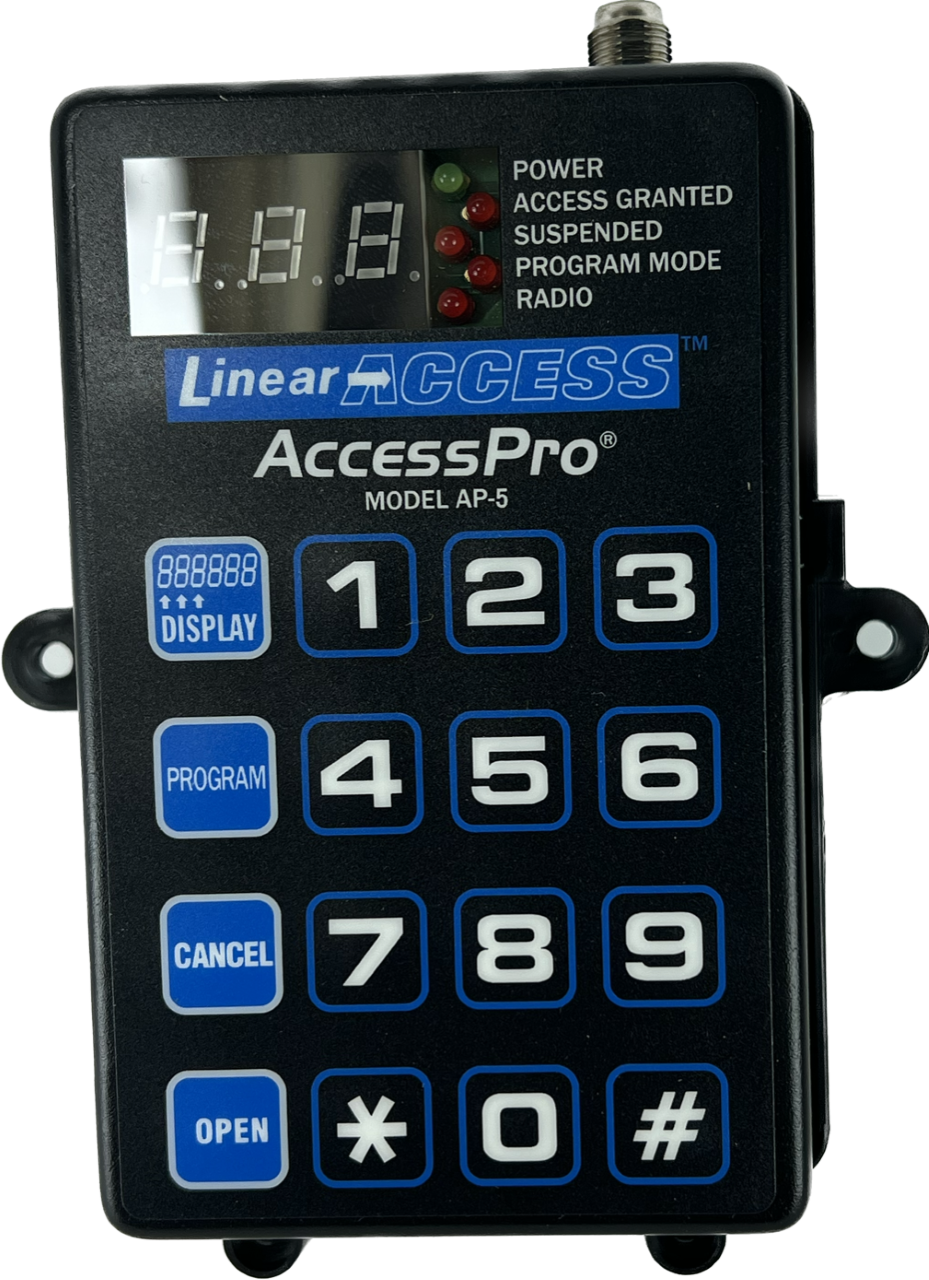

Linear AP-5 Access Control Radio Receiver ACP00953
No reviews yet
• Product Model - AP-5
Original price was: US $154.23.US $90.00Current price is: US $90.00.
42% OFF
| from 2 pcs. |
|---|
2 or more US $87.50
Availability: Out of Stock
US Shipping – US $5.95 |
Canada Shipping – US $13.30
(Quantity shipping discount applied at checkout)
Out of stock
Descriptions
Reviews
Descriptions
The Linear AP-5 Wireless Access Controller can control up to two different Gates or Doors is designed for a broad range of applications and can control one or two door strikes, mag-locks, barrier gates, automatic gates, or door operators. Its wireless design and small size fits a variety of access control requirements.
The unit’s built-in high-gain superheterodyne receiver picks up transmitter signals from up to 500 feet away, depending on exterior conditions. Can store up to 480 Linear MegaCode transmitters and six Model MGT supervised safety edge transmitters can be programmed into the AP-5’s memory. Up to 238 entry codes can be programmed for activation by one or more MegaCode® wireless keypads. The AP-5 will retain its memory, even without power.
Three dry contact relay outputs are provided. One relay is dedicated for access control, another dedicated for obstacle detection, and the third programmable for either access or obstacle. Access relays can be set for timed or latch-on/latch-off toggle operation. The on or off toggle state of a relay is maintained even after power interruption. For entrapment detection, obstacle relays activate from MGT safety edge transmitters and connect to the obstacle input of the access device. OPEN REQUEST input terminals are supplied for hardwired activation of the access devices with an external pushbutton or keyswitch.
The AP-5 monitors each MGT safety edge transmitter for hourly status reports, tamper signals, and low battery signals. A beep will sound every 5 seconds if a fault occurs and the trouble source can be displayed. An access transmitter must be activated twice to trigger the access relay if a supervisory trouble condition exists on any MGT transmitter.
The AP-5 can be powered from 12-24 Volts AC or DC. The Form C relay outputs can switch up to 1 Amp each. An EARTH GROUND terminal is provided as a recommended connection for maximum lightning and static protection.
Product Features:
Ideal for gated communities, parking facilities, and industrial sites
Easy to set-up and use, up to 480 remotes can be programmed with a few keystrokes
Easy to add, suspend, and delete transmitters through programming mode, no transmitter dipswitches to set
Supports 480 block coded transmitters or 238 individual transmitters/wireless keypad entry codes
Supports up to six fully supervised safety edge transmitters
AP-5 replaces Linear’s AP-4; AP-5 available for replacement of existing AP-4 units only
RF frequency: 318 MHz
Dimensions: 4.45″ W x 5.75″ H x 1.5″ D (without antenna)
